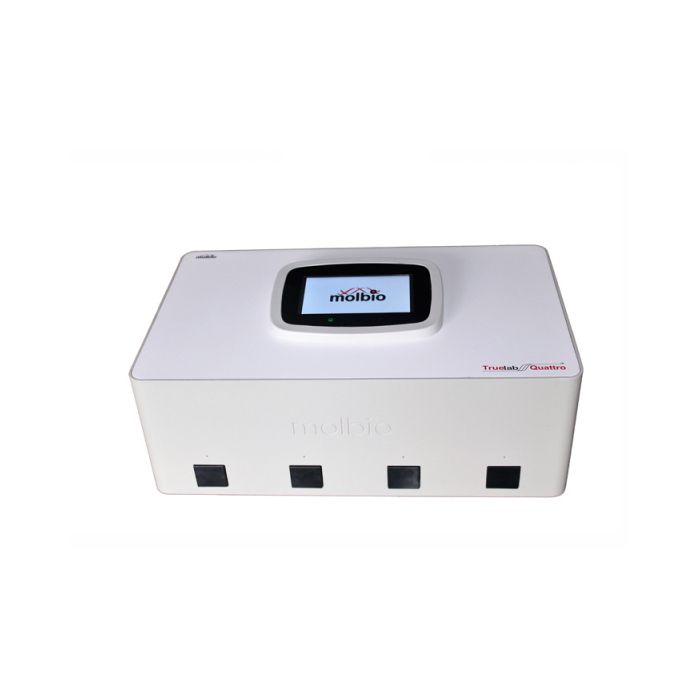

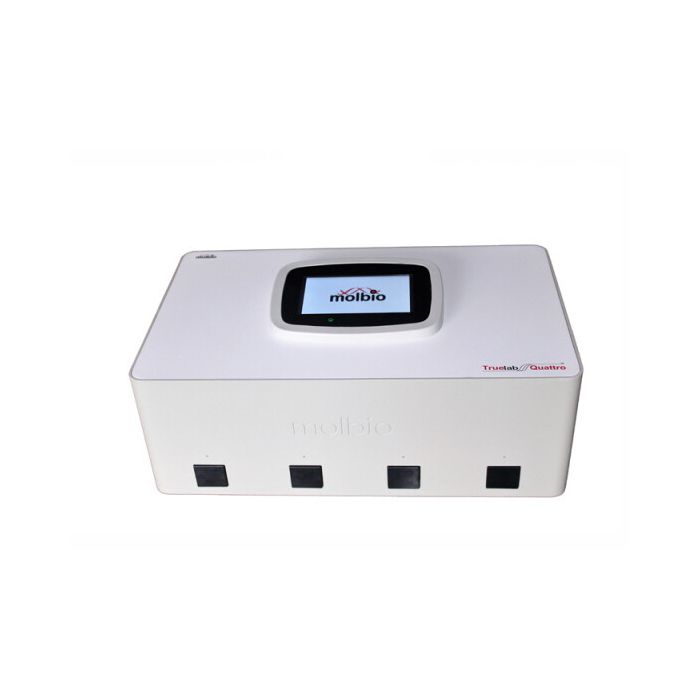

Truelab™ Quattro Real Time Quantitative micro PCR Analyzer CE/IVD

Truelab Real Time Quantitative micro PCR System comprising of a Truelab Quattro device, two Trueprep AUTO devices and accessories

Key Features Truelab™ Quattro Real Time Quantitative micro PCR Analyzer:

- Fully Automatic
- Three Wavelength System
- Performs 40-48 Tests in 8 Hours
- Completely Randomized Operation
- Runs on any Truenat Chip
- Portable
- Battery Operated Technical Specification:

Principle: Patented real-time micro PCR

Optics: Fluorescence, Three Wavelength

Speed: 40 cycles of PCR/35 minutes

Throughput: 4 chip-Random access

Interface: Wi-Fi, 3G, Bluetooth

Calibration: Auto-calibration

Memory: 20,000 test results

Operating environment: Temperature: 15-40oC, RH: 10 -80%

Display: Capacitive 5” Touch Screen

Printer: External 2” Bluetooth Thermal Printer

Power: - Rechargeable Lithium Ion Battery Pack: 7.4V; 8.7 Ah Input to AC/DC adaptor: Single Phase 100-240V; 50/60Hz; 1000 mA
- Output from AC/DC adaptor: 10 V; 4500mA; 45VA. If the input specifications in your country do not meet the above requirements, please contact your local Molbio representative.

Weight: 5,2 kgs

Size: 400 mm x 242 mm x 159 mm

Components

The standard Truelab Quattro Dx package contains the following components:
1x Truelab Quattro Dx Real Time Quantitative micro PCR Analyzer
1x AC Adapter to power the Truelab Uno Dx
1x Truelab Antenna
1x Truelab Microtube Stand
1x Truepet SPA fixed volume precision micropipette-6 µl
1x Truelab Uno Dx Real Time Quantitative micro PCR Analyzer User Manual
